Canon R50 Video Settings: How to Get Cinematic Footage

1. Use 4K for normal speed footage

The R50’s oversampled 4K is my starting point when I want detailed footage at normal speed. Choose roughly 24fps for a film style cadence or 30fps for slightly smoother motion. PAL settings use 25fps instead.

Full HD High Frame Rate recording is useful when I want slow motion. It records at about 120fps or 100fps depending on the video system, without sound, and plays back at quarter speed.

Choose the format for the shot rather than use the highest frame rate for everything. Canon’s R50 recording specifications list the available combinations.

2. Set shutter speed for the motion you want

A useful starting point is a shutter speed around twice the frame rate. This is commonly called the 180 degree shutter rule.

This gives familiar motion blur, but it is a guideline. A faster shutter can suit a particular effect, and artificial lighting may require a different setting to avoid flicker. Record a short test before a long take.

3. Try subtle diffusion when you want softer highlights

A mist or diffusion filter changes the way bright highlights spread into the surrounding image. It can reduce contrast and soften the very crisp look of a digital image.

The Tiffen Black Pro-Mist was the example in my original video. I would start with a mild 1/8 or 1/4 strength and compare it with no filter under the same lighting.

Choose the filter diameter for the actual lens, or use a suitable step up ring. Strength and thread size are separate choices. I would avoid buying a filter just because another setup used it.

4. Choose a brighter lens for a specific view

A wider maximum aperture gives me more control over background blur and lets more light reach the sensor. It also makes focus more critical at close distances.

• Canon RF 50mm f/1.8 STM: a tight portrait view on the R50, with framing similar to an 80mm lens on full frame.
• Canon RF 35mm f/1.8: a more general view, though it can still feel tight indoors.
• Canon RF 24mm f/1.8 Macro IS STM: the widest of these three choices for including more surroundings.

The R50’s APS-C sensor gives a narrower field of view than a full frame camera using the same lens. Choose the framing you need before deciding which aperture looks most appealing.

5. Use an ND filter to control daylight exposure

An ND filter reduces the amount of light entering the lens. It helps me keep the shutter speed and aperture I want when bright daylight would otherwise overexpose the shot.

One option is a K&F Concept 82mm variable ND2-400 filter. That diameter is larger than the lenses above, so a suitable step up ring is needed. Check the lens thread, ring size and clearance before buying.

Test a variable ND through the range you plan to use. Very strong settings can cause uneven darkening or a color shift. If the shot looks worse with the filter, change the setting or use a different filter.

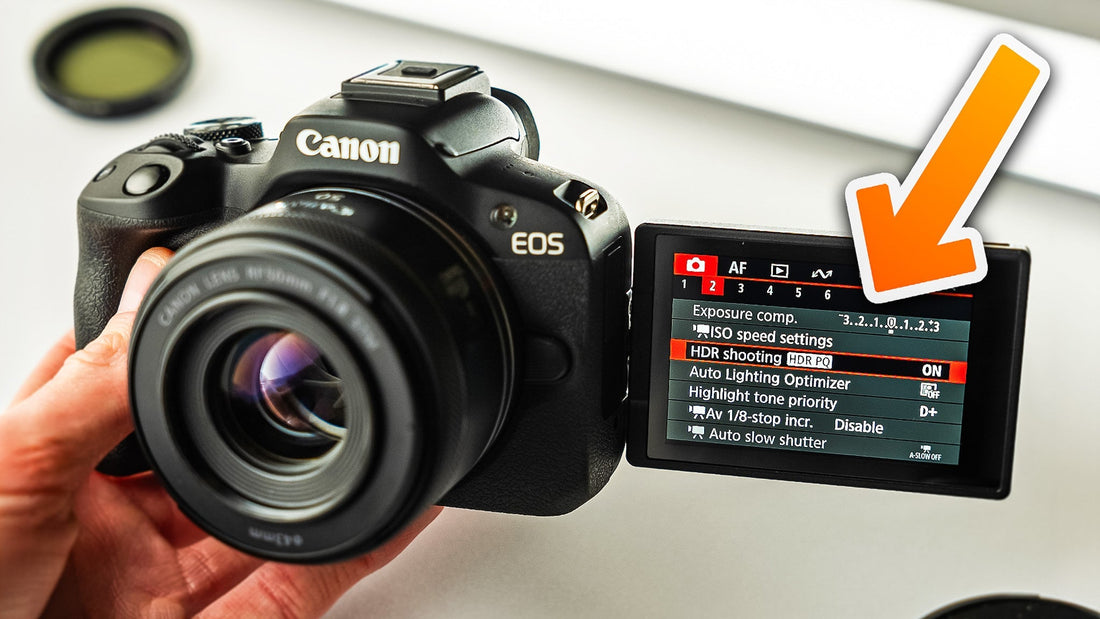

6. Use HDR PQ with an editing and delivery plan

HDR PQ records 10-bit HDR footage. It is not a flat Canon Log profile or an automatic way to make a clip look cinematic.

The footage needs software and display handling that understand its HDR format. For an ordinary SDR edit, use the editor’s appropriate color conversion or tone mapping, then check the exported result on the devices your audience will use.

I would test recording, importing and exporting a short clip first. Leave HDR PQ off when a simple SDR workflow is more useful than the extra color handling. Correct exposure still matters in either format.

7. Add a cage or handle only when it helps

A cage gives me places to mount accessories and a different way to hold the camera. It can make operation more comfortable, but it does not add optical or sensor stabilization.

The SmallRig 4214 cage is designed for the Canon R50. The SmallRig 3765 top handle uses a 3/8 inch locating connection for ARRI style mounting. Match the screw and locating holes to the mounting point you intend to use.

More weight is not always helpful. I would keep a handheld rig small, support it comfortably and review the clip before adding more parts. Lens IS or the camera’s digital stabilization can help with some movement, while digital stabilization changes the framing.

Where I would start

Record the same short scene in 4K with a suitable shutter speed and steady exposure. Then compare one change at a time: a lens, a filter or a different way of holding the camera.

If the framing of the kit lens already works, an ND filter for daylight may be more useful than another lens. If the problem is subject movement or missed focus, a heavier rig will not solve it.
